ANB-Solar LED Compact (AIP Series) | ANB-Solar LED Split (AIS Series) |
Applications
Product Features
Benefits
Simple Installation & Extremely Practical

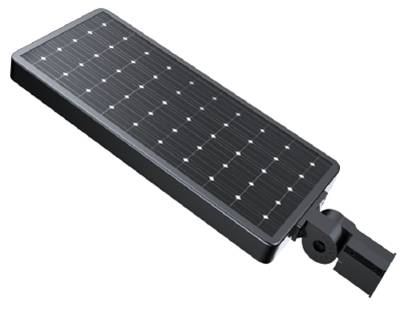

Compact - AIP | |
|
The Original and World’s A Grade ANB “All-in-One” Solar light with all components. Fully Integrated within an easy to install panel. |

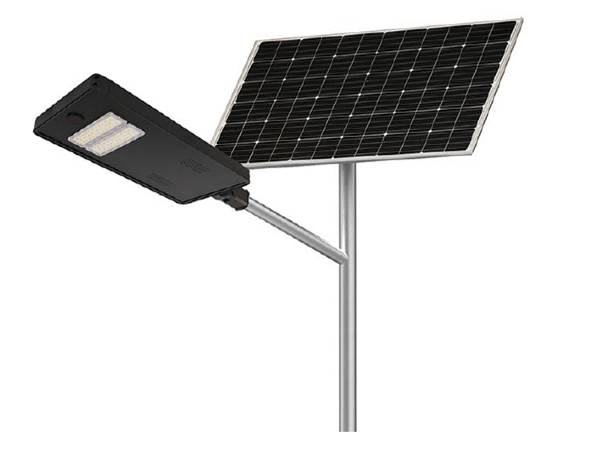

Split- AIS | |
The latest ANB AIS series which combines a highly efficient solar panel connected to a high capacity lithium-ion battery, motion sensor and super bright 170lm/W LED light source. |
Motion Sensor
It comes with motion detection system that automatically regulate the light source from full bright (100%) to dim mode (25%) to increase battery life span.
Solar Panel

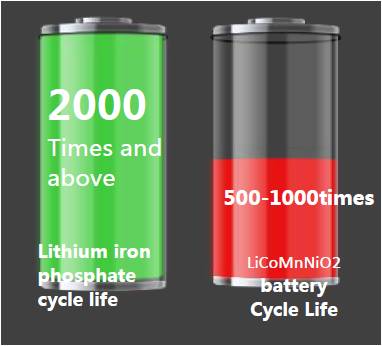

Lithium Iron Phosphate Battery
|
Working Principal
Where there is light radiation, photovoltaic modules are converted to electrical energy by solar radiation and intelligent controller is used to charge electrical energy into lithium iron phosphate battery. At the same time, the intelligent controller protects the overcharge and over discharge of the battery. The lighting switch and adjust lighting intelligent control without operation.
Photometrics Luminaire - AIP / AIS
Planning and analyzing of street light can be done by using lighting design software, which allows lighting simulations. It uses rendering, the process of generating an image from a model, by means of computer programs resulting in different tools for measuring the simulated light levels.
LED Chip
By choosing the Luxeon LED chips, with the aluminum lamp base and sealed lens, with its excellent heat dissipation, it is as if the LED chip has been placed in a sealed unit. Thus it maintains high brightness levels with very little fading. The sealed lenses are made of strong UV protected OC and are aging and shock resistant. The well optimized light distribution allows for a more uniform and wider lighting area.
Light Distribution Patterns - AIP
Light Distribution Patterns - AIS
Higher Lumen - AIP
Model | Replace MHL | Lumen |
ANB-10W AI (P) | 35W | 1700lm (Equivalent to competitor's LED 15W - 20W) |
ANB-15W AI (P) | 50W | 2250lm (Equivalent to competitor's LED 25W - 30W) |
ANB-20W AI (P) | 75W | 3400lm (Equivalent to competitor's LED 30W - 35W) |
ANB-25W AI (P) | 100W | 4250lm (Equivalent to competitor's LED 40W - 45W) |
ANB-30W AI (P) | 125W | 5100lm (Equivalent to competitor's LED 50W - 55W) |
ANB-40W AI (P) | 150W | 6800lm (Equivalent to competitor's LED 65W - 70W) |
* Offer 1700lm / 2250lm / 3400lm / 4250lm / 5100lm / 6800lm, 6 different lumen value selection
Higher Lumen - AIS
Model | Replace MHL | Lumen |
ANB-15W AI (S) | 50W | 2500lm (Equivalent to competitor's LED 25W - 30W) |
ANB-20W AI (S) | 75W | 3400lm (Equivalent to competitor's LED 30W - 35W) |
ANB-30W AI (S) | 100W | 5100lm (Equivalent to competitor's LED 50W - 55W) |
ANB-40W AI (S) | 125W | 6800lm (Equivalent to competitor's LED 65W - 70W) |
ANB-50W AI (S) | 150W | 8000lm (Equivalent to competitor's LED 70W - 80W) |
ANB-60W AI (S) | 200W | 10200lm (Equivalent to competitor's LED 85W - 95W) |
* Offer 2550lm / 3400lm / 5100lm / 6800lm / 8500lm / 10200lm, 6 different lumen value selection
Product Information - AIP
Model | Fixture | LED | Solar Panel | Battery | PIR Sensor | Light Distribution |
ANB-10W AI (P) | 655*316*82 | 1700lm | 18V 17W | 115W | Yes | AU P5 |
ANB-15W AI (P) | 905*316*82 | 2550lm | 18V 29W | 154W | Yes | AU P5 |
ANB-20W AI (P) | 1045*316*82 | 3400lm | 18V 35W | 192W | Yes | AU P5 |
ANB-25W AI (P) | 1201*316*82 | 4250lm | 18V 45W | 230W | Yes | AU P5 |
ANB-30W AI (P) | 1295*371*82 | 5100lm | 18V 60W | 297W | Yes | AU P5 |
ANB-40W AI (P) | 1295*4441*82 | 6800lm | 18V 70W | 308W | Yes | AU P5 |
Product Information - AIS
Model | ANB-15W AI (S) | ANB-20W AI (S) | ANB-30W AI (S) | ANB-40W AI (S) | ANB-50W AI (S) | ANB-60W AI (S) |
Equivalent to competing products | 25W - 30W | 30W - 35W | 50W - 55W | 65W - 70W | 70W - 80W | 85W - 95W |
LED (luminous flux) | 2550lm | 3440lm | 5100lm | 6800lm | 8000lm | 9300lm |
Solar Panel (Parameter/W) | 18V 55W | 18V 65W | 18V 85W | 18V 110V | 36V 165W | 36V 210W |
Solar Panel (Dimension mm) | 685*515 | 685*515 | 758*670 | 1016*670 | 1480*670 | 1335*986 |
Battery/W (built-in lamp housing) | Lithium 230.4W | Lithium 307.2W | Lithium 384W | Lithium 460.8W | Lithium 614.4W | Lithium 921.6W |
Smart Controller | 365 days ON | 365 days ON | 365 days ON | 365 days ON | 365 days ON | 365 days ON |
Optical Lens | Type II, III, P5, 120° | Type II, III, P5, 120° | Type II, III, P5, 120° | Type II, III, P5, 120° | Type II, III, P5, 120° | Type II, III, P5, 120° |
Lamp Dimension (mm) | 672*330*82 | 672*330*82 | 812*330*82 | 812*330*82 | 812*330*82 | 952*330*82 |
Lamp Carton (cm) | 76.2*42*17 | 76.2*42*17 | 90.2*42*17 | 90.2*42*17 | 90.2*42*17 | 104.2*42*17 |
Lamp N.W (kg) | 10.01 | 10.59 | 13.57 | 15.05 | 20.71 | 26.42 |
Lamp G.W (kg) | 11.01 | 11.99 | 15.27 | 17.05 | 23.11 | 29.42 |
Solar Panel Carton (cm) | 75.5*59*7 | 75.5*59*7 | 82.8*74*8 | 108.6*74*8 | 155*74*8 | 140.5106*9 |
Solar Panel N.W (kg) | 4.6 | 4.6 | 6.6 | 7.5 | 12.0 | 15.0 |
Solar Panel G.W (kg) | 5.6 | 5.6 | 8.0 | 9.0 | 13.5 | 16.5 |
Installation Photos
